High Availability Best Practices

27-October-2023

This document provides our best-practice suggestions for a robust high availability architecture when incorporating a threatER Enforcer into a layered security architecture, either in front of or behind a next-generation firewall and potentially other security controls.

Layered security is a complex topic, and extends well beyond network security controls, into software stacks, access considerations, data models, and more. For purposes of this document, we’ll focus on how the growing number of layered security elements placed in critical high availability paths are driving the need for more robust failover strategies. We define “layered security” in a network-driven high availability scenario as any high availability path that has two or more security controls in it. As more elements begin to be placed into high availability paths, for security purposes or for other purposes, it is imperative to ensure that you have a failover strategy in place that doesn’t limit the ability of your IT teams to quickly diagnose and remediate problems. That is, it is important to ensure that your failover strategy does not limit your ability to collect and act on all of the information available in at least near-real-time. Generally, this means that you need the ability to utilize any and all high-fidelity information available from each element in your high availability chain in independent fashion via standards-based APIs, correlate those pieces of information, and act on them. Thankfully, business tools exist to facilitate precisely that type of workflow: modern SIEMs.

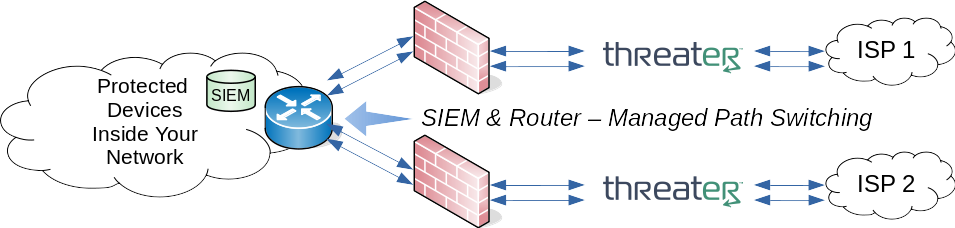

A general depiction of a fairly standard Active / Active or Active / Passive path switching strategy for a layered network security architecture, managed by a SIEM of your choosing, would typically resemble:

The drawing shows the threatER Enforcer sitting in front of your NGFW facing the ISP, but the same HA principles hold if you choose to deploy the threatER Enforcer behind the NGFW instead.

Hardware capable of dual bridging pairs can also be used for situations where two one gigabit links are used throughout the redundant paths:

Regardless of a single- or dual-bridge deployment, the SIEM is configured to constantly receive health and related telemetry from the various network and security elements on both the top and the bottom paths. You should consult the documentation for your other inline elements (such as your NGFW) to retrieve appropriate information from those elements. It is recommended to use simple REST API calls to retrieve path information on-demand from the threatER Enforce software for independent status of both the inside and outside ports. A simple linux bash script is provided at the end of this document as an example for retrieving the information in the popular JSON format.

In a typical workflow, if the SIEM detects or correlates a path failure on an active link, the SIEM will reconfigure the managing router to switch the path in Active / Passive scenarios, or disable a path in Active / Active scenarios. Once the previously active path is remediated, it can revert to the original configuration if desired.

Appendix: Example enforceapi Script to Retrieve Port Status Information

In this appendix we provide a SIEM-neutral script that we call enforceapi for our customers to use that can be leveraged out-of-the-box either directly or under the control of other tools (or ported to any architecture that may be needed) for purposes of gathering high-fidelity information critical to responsible failover strategies, leveraging the REST APIs included in our threatER Enforce software.

Before we discuss our enforceapi script in detail in this Appendix, it is important to be aware of the bridged pair port and naming conventions for our copper and/or fiber bridging configuration. Generally you’ll find stickers on the unit that identify the ports and port pairs.

Most hardware running threatER Enforce software supports only a single bridge pair br0. In some cases it is also possible to deploy our software on systems with two bridging pairs. A picture of the rear of the copper and fiber variants of one such system is shown below for naming reference:

Our customers are free to use or modify the enforceapi script provided in this appendix to suit their integration needs, such as for integration into their SIEM for high availability management. We’ve tested the script on Ubuntu LTS, but it should work equally well on other Ubuntu Linux variants, and can likely be trivially ported to other Linux distributions by knowledgeable customer staff.

To use the script, you will need to make sure you have the curl and jq tools installed by a user with sufficient privilege on the Linux system that runs the script:

$ sudo apt-get update && sudo apt-get install curl jq

Some advanced SIEMs have the ability to make REST calls natively, so this script may not even be needed. If it is needed, this script can be invoked at any time by the SIEM (or anything else for that matter), according to whatever schedule needed or even in on-demand fashion, to retrieve independent information for both the inside and outside ports leveraging the threatER Enforce software’s built-in REST API, which is the same API leveraged by our local HTTPS UI.

As an aside, if you’re ever wondering what API calls our HTTPS UI makes, it’s trivial to see them in modern browsers, such as by using Mozilla Firefox’s Developer Tools view [F12], or Google Chrome’s DevTools [also F12].

HTTPS is used for all API communications both in our UI and in the provided script. The script assumes you haven’t uploaded a specific SSL certificate to your system and therefore uses the ‘--insecure’ toggle to the curl commands. If you have uploaded a certificate package and/or wish to use it in secure modes (this is generally unnecessary for most localized already-secure deployments), you may need to adjust the curl commands in the script.

When you are ready to run the script, you can see detailed help about the enforceapi tool by invoking enforceapi with no parameters.

Here’s an example on-demand invocation which will use preset variables internal to the script for addressing and authentication, in turn using our API to retrieve all available port information in the popular JSON format from a linux command line on an arbitrary system of your choosing connected to the same network as the administration port:

$ enforceapi pairs

[

{

"name": "br0",

"inside": {

"name": "eth4",

"linkStatus": "Up",

"speed": "1Gb/s",

"duplex": "Full Duplex"

"outside": {

"name": "eth5",

"linkStatus": "Up",

"speed": "1Gb/s",

"duplex": "Full Duplex"

}

]

The example above was for a single-bridge pair system. The same exact command can be run against a dual-bridge pair system to get results for both of the bridge pairs br0 and br1:

$ enforceapi pairs

[

{

"name": "br0",

"inside": {

"name": "eth5",

"linkStatus": "Up",

"speed": "1Gb/s",

"duplex": "Full Duplex"

"outside": {

"name": "eth4",

"linkStatus": "Up",

"speed": "1Gb/s",

"duplex": "Full Duplex"

}

{

"name": "br1",

"inside": {

"name": "eth3",

"linkStatus": "Up",

"speed": "1Gb/s",

"duplex": "Full Duplex"

"outside": {

"name": "eth2",

"linkStatus": "Up",

"speed": "1Gb/s",

"duplex": "Full Duplex"

}

]

Note that the pairs parameter is a shorthand wrapper for our raw API call to endpoint network/bridging.

Notice that both the inside and outside ports show a linkStatus of Up. If either link state changes, such as the outside port, you’d see it report Down. As an example, here’s what you might see on one of our single-pair systems:

$ enforceapi pairs

[

{

"name": "br0",

"inside": {

"name": "eth4",

"linkStatus": "Up",

"speed": "1Gb/s",

"duplex": "Full Duplex"

"outside": {

"name": "eth5",

"linkStatus": "Down",

"speed": "0Mb/s",

"duplex": "N/A"

}

]

For brevity, we won’t repeat the same example for a dual-pair configuration, but as you might guess, it would report the other pair’s current port status (up or down) in the JSON results, just like the earlier example.

Note that in the example above, the output port reads Down, but the inside port shows Up. This information could be parsed by the SIEM to take appropriate action(s) - and not just with regard to high availability. This is much more beneficial than older methodologies employing simplistic link state propagation. Link state propagation schemes often hide important information about where the problem is, but that information is critical to rapid network remediation. This is especially true when troubleshooting high availability path problems, because when a path is down, you’re typically in a race to get it restored as quickly as possible on the off-chance that the other path fails in the interim. Some network elements of course only support link state propagation and nothing else, which is unfortunate, but in their defense, some systems and their associated software are completely unmanaged and don’t have modern REST-based APIs like we do.

If you really want to “emulate” a link state propagation environment with the API, you can do so using the pathstate parameter, and it will respond with a simple Down or Up response for the pair you select. If both the inside port and outside port associated with the requested pair are Up, it will respond with Up:

$ enforceapi pathstate br0

$ enforceapi pathstate br1

And if either the inside port or the outside port (or both) report Down, the pathstate will return Down for the specified bridge pair. For example, here we see that br1 shows down:

$ enforceapi pathstate br1

Down

Note that the script will return a value of ‘Bypass’ if any pair is found to be in bypass mode. Your SIEM tool would typically need to translate that to either ‘up’ or ‘down’, depending on your business needs. Keep in mind that once in bypass, you must manually switch the pair back into normal mode when ready. A bridge pair that is in bypass means that all traffic flows through via hardware control and no packets can be seen by the threatER Enforce software, meaning no threatER protection exists on bypassed traffic. The bypass mode is meant to be a failsafe to ensure continued traffic flow for hard failures such as a power outage to the hardware upon which the threatER Enforce software is resident, an internal hardware failure (such as a RAM failure, disk failure, motherboard failure, and so on), or catastrophic failure of internal software watchdog techniques (such as a critical software/network process that erroneously stops forwarding all traffic due to perhaps a non-catastrophic hardware failure).

There’s a enforceapi sub-command portinfo that can be used to pull the full JSON information for an individual port pair. For example, on a dual-bridged system, if you want just the full pair information for br1, you can use:

$ enforceapi portinfo br1

{

"name": "br1",

"inside": {

"name": "eth3",

"linkStatus": "Up",

"speed": "1Gb/s",

"duplex": "Full Duplex"

"outside": {

"name": "eth2",

"linkStatus": "Up",

"speed": "1Gb/s",

"duplex": "Full Duplex"

}

Some final points of interest about the script and its use:

You must edit the three CHANGEME values that appear in the script to match the IP address of your target appliance running threatER Enforce software and its associated login credentials. If you don’t wish to embed that information into the script, simply change the three CHANGEME values to something innocuous, like ICHANGEDIT, and use command line parameters to override the settings.
The IP address, username, and password credentials can be overridden on command line invocations with the ip, user, and pass sub-commands, respectively. These, however, should be used carefully to avoid prying eyes.
Parameter order is important. Some parameters must appear before others. For more details, see the help, by invoking enforceapi with no parameters.
We strongly recommend you create a separate user with “read-only” privileges in threatER Enforce for direct API access, so that you can properly monitor API-specific logins and to avoid the potential for accidentally overwriting critical data. Once you have created the read-only user in the UI, you must first log in with that user through the UI (a one-time operation) in order for the new user to be able to access the system and the API.

And last but not least, here’s the source code for the example enforceapi script. You can cut-and-paste it into a file named enforceapi, edit the CHANGEME values, put the tool somewhere in your path, assign the desired permissions (world readable is not recommended if you embed your access credentials), and start using it. Please note the acceptable use and warranty information embedded in the comments at the top of the script.

#!/bin/bash

# Revision: 18

# This script is for use or modification exclusively by threatER customers with an

# active support subscription. No other use is permitted.

# By using and/or modifying this script (THIS PRODUCT), you agree that:

# threatER PROVIDES THIS PRODUCT "AS IS". threatER

# MAKES NO WARRANTY, EXPRESS OR IMPLIED, AND HEREBY DISCLAIMS

# ALL IMPLIED WARRANTIES, INCLUDING ANY WARRANTY OF

# MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

# The script's purpose is to invoke direct API calls to/from a threatER Enforce software installation

# using curl commands alongside simple parsing with jq.

# This script is written in bash. It has been tested running from an arbitrary Ubuntu 18.04 LTS or

# Ubuntu 20.04 LTS linux system with the 'netcat', 'curl' and 'jq' packages installed, but other

# Ubuntu LTS variants should run this equally well.

# If you need to install curl and jq on your host system, you can do so with sudo privileges as follows:

# $ sudo apt-get update && sudo apt-get install curl jq netcat

# To see the simple help information associated with this script, run this script with no parameters,

# or with a parameter of 'help'.

# You should really change the three script variables below 'productDefaultIp', 'productDefaultUser', and 'productDefaultPass'

# from "CHANGEME" to something else, or if you leave them with these default nonsensical values, be sure to

# use the provided command line parameters as documented in the help to adjust them for your environment.

productDefaultIp=CHANGEME

productDefaultUser=CHANGEME

productDefaultPass=CHANGEME

# general variables - do not change these

progInvoked=$0

progBase=$(echo $0 | rev | cut -d '/' -f1 | rev)

tmpFileLeaderBase="eapi"

tmpFileLeader="/tmp/$tmpFileLeaderBase"

ofile=$tmpFileLeader.txt

# output color codes of interest

RED='\033[1;31m'

YELLOW='\033[1;33m'

NC='\033[0m'

# output control function - central location for quiet/verbose checks

function funcOutputMsg {

if [ "$quiet" == "false" ]

then

echo -e "$1"

}

# primary error message handling - always displays regardless of quiet mode, and always in red

function funcErrorMsg {

echo -e "${RED}$1${NC}"

}

# error processing - curl

function funcErrorExitCurl {

funcErrorMsg "\nERROR:\n$(cat ${tmpFileLeader}err.txt)"

exit 1

}

# error processing - general

function funcErrorExitGeneral {

funcErrorMsg "\nERROR: $1"

exit 1

}

# help

function funcShowHelpAndExit {

# clear global quiet flag

quiet=false

# counsel user if they haven't updated the CHANGEME defaults yet

grep "^productDefaultIp=CHANGEME" $progInvoked &>/dev/null

local locChangeMe1=$?

grep "^productDefaultUser=CHANGEME" $progInvoked &>/dev/null

local locChangeMe2=$?

grep "^productDefaultPass=CHANGEME" $progInvoked &>/dev/null

local locChangeMe3=$?

local locErrMsg=

if [[ "$locChangeMe1" == "0" || "$locChangeMe2" == "0" || "$locChangeMe3" == "0" ]]

then

locErrMsg="You haven't yet changed the CHANGEME quantities in this script for the IP address, username and password. Be sure you either change them in the script with a text editor of your choice, or use the available command line parameters to override them. Exiting."

# if we didn't construct the error message above, see if anything specific was passed in for use

if [[ "$locErrMsg" == "" && "$1" != "" ]]

then

locErrMsg="$1"

funcOutputMsg ""

funcOutputMsg "Copyright 2023, threatER, Inc., All Rights Reserved. The comments at the top of the source code for this script contain relevant acceptable use and warranty information. You can view this information using a text viewer/editor of your choice."

funcOutputMsg ""

funcOutputMsg ""

funcOutputMsg " bypass : shows relevant bypass information for all avaialble pairs."

funcOutputMsg ""

funcOutputMsg " help : displays this help"

funcOutputMsg ""

funcOutputMsg " ip [address] : optional; overrides the default target IP address used by the script."

funcOutputMsg ""

# undocumented: nologout

# funcOutputMsg " nologout : keeps the session active after running instead of logging out. Useful for manual follow-up commands; as a best practice, be sure to logout manually when you're done. And last but not least, you should only use this option if you are familiar with manual logout procedures."

# funcOutputMsg ""

funcOutputMsg " pairs : shorthand for 'raw network/bridging'"

funcOutputMsg ""

funcOutputMsg " pass [password] : optional; overrides the default password used by the script. However, you should use this override cautiously, ensuring that no one can see what you type or see your screen. It is much safer to embed the password in this script and ensure that only appropriately privileged users have access to the script for read/write/execute permissions."

funcOutputMsg ""

funcOutputMsg " pathstate [br0|br1] : shows either 'Up' or 'Down' depending on the path state of the requested bridged pair. If you specify br1 on a system that doesn't support dual bridging, no results will generally be returned (except for any verbose information requested). Note: this emulates a link state propagation if such legacy techniques are needed."

funcOutputMsg ""

funcOutputMsg " portinfo [br0|br1] : shows the raw JSON output for the specified bridged pair. If you specify br1 on a system that doesn't support dual bridging, no results will generally be returned (except for any verbose information requested)."

funcOutputMsg ""

funcOutputMsg " raw [direct API call] : the raw JSON results are returned for a direct API v1 call via a standard GET operation. Leading 'api/v1/' is assumed unless a different leader is supplied. An example raw script invocation might be '$0 raw network/bridging' which would return the raw JSON port information for both the inside and outside ports of all bridging pairs. Another example is '$0 raw bypass' which will return information about bypass status, if applicable."

funcOutputMsg ""

funcOutputMsg " rawpatch [direct API call] [JSON file to PATCH] : the raw JSON results are returned for a direct API v1 call via a standard PATCH operation for a specified JSON data file. Leading 'api/v1/' is assumed unless a different leader is supplied."

funcOutputMsg ""

funcOutputMsg " rawpost [direct API call] : the raw JSON results are returned for a direct API v1 call via a standard POST operation. Leading 'api/v1/' is assumed unless a different leader is supplied. An example would be to use an invocation '$0 rawpost system/reboot' which would invoke the reboot endpoint via POST operation to attempt to reboot the target system. (Note: that has the same effect as the standalone 'reboot' parameter to this script.)"

funcOutputMsg ""

funcOutputMsg " rawput [direct API call] [JSON file to PUT] : the raw JSON results are returned for a direct API v1 call via a standard PUT operation for a specified JSON data file. Leading 'api/v1/' is assumed unless a different leader is supplied."

funcOutputMsg ""

funcOutputMsg " reboot : uses a POST API call to attempt to reboot the target system."

funcOutputMsg ""

funcOutputMsg " user [username] : optional; overrides the default username used by the script."

funcOutputMsg ""

funcOutputMsg " verbose : displays detailed script information as it happens. Useful for debugging. Generally, you won't want to use 'verbose' in a production scenario in order to declutter the output for results parsing in your SIEM. If used, 'verbose' should be the first parameter, otherwise undefined behavior may result."

funcOutputMsg ""

if [ "$locErrMsg" != "" ]

then

funcOutputMsg ""

funcOutputMsg "${RED}$locErrMsg${NC}"

funcOutputMsg ""

funcOutputMsg "Current target default config:"

funcOutputMsg " IP: $productDefaultIp"

funcOutputMsg " user: $productDefaultUser"

funcOutputMsg ""

exit 0

}

# logout

function funcLogoutExit {

if [ "$maintainSession" != "true" ]

then

funcOutputMsg "\nLogging out ..."

curl --insecure -H "Accept: application/json" -H "Authorization: Bearer $authBearer" -X POST "https://$productIp/api/v1/auth/logout" &>${tmpFileLeader}err.txt

if [ "$?" == "0" ]

then

funcOutputMsg "Logged out"

else

funcOutputMsg "\nMaintaining session and not logging out due to command line invocation parameter ..."

# remove temp files

rm -f /tmp/${tmpFileLeaderBase}*.txt

rm -f /tmp/${tmpFileLeaderBase}*.json

exit 0

}

# makes a GET API call via curl

function funcApiCall {

local locUseLeader=api/v1/

if [ "${1:0:5}" == "api/v" ]

then

locUseLeader=

rm -f $ofile

rm -f ${tmpFileLeader}err.txt

funcOutputMsg "curl: curl --output $ofile --insecure --silent -G \"https://$productIp/$locUseLeader$1\" -H \"Authorization: Bearer $authBearer\" 2>${tmpFileLeader}err.txt"

curl --output $ofile --insecure --silent -G "https://$productIp/$locUseLeader$1" -H "Authorization: Bearer $authBearer" 2>${tmpFileLeader}err.txt

if [ "$?" != "0" ]

then

funcErrorExitCurl

}

# makes a PATCH API call via curl

function funcApiPatchCall {

local locUseLeader=api/v1/

if [ "${1:0:5}" == "api/v" ]

then

locUseLeader=

rm -f $ofile

rm -f ${tmpFileLeader}err.txt

local locCmd="curl --output $ofile --insecure --silent -X PATCH 'https://$productIp/$locUseLeader$1' -d '$(cat $jsonFile)' -H 'Authorization: Bearer $authBearer' 2>${tmpFileLeader}err.txt"

funcOutputMsg "curl: $locCmd"

bash -c "$locCmd"

if [ "$?" != "0" ]

then

funcErrorExitCurl

}

# makes a POST API call via curl

function funcApiPostCall {

local locUseLeader=api/v1/

if [ "${1:0:5}" == "api/v" ]

then

locUseLeader=

rm -f $ofile

rm -f ${tmpFileLeader}err.txt

curl --output $ofile --insecure --silent -X POST "https://$productIp/$locUseLeader$1" -H "Authorization: Bearer $authBearer" 2>${tmpFileLeader}err.txt

if [ "$?" != "0" ]

then

funcErrorExitCurl

}

# makes a PUT API call via curl

function funcApiPutCall {

local locUseLeader=api/v1/

if [ "${1:0:5}" == "api/v" ]

then

locUseLeader=

rm -f $ofile

rm -f ${tmpFileLeader}err.txt

local locCmd="curl --output $ofile --insecure --silent -X PUT 'https://$productIp/$locUseLeader$1' -d '$(cat $jsonFile)' -H 'Authorization: Bearer $authBearer' 2>${tmpFileLeader}err.txt"

funcOutputMsg "curl: $locCmd"

bash -c "$locCmd"

if [ "$?" != "0" ]

then

funcErrorExitCurl

}

# handles path state determination for a specified pair

function funcPathStateForPair {

funcOutputMsg "\nInvoking pathstate operation ..."

# first determine if bypass is set for the pair

funcApiCall bypass

cat $ofile | jq ".[] | select ( .name | contains(\"$1\") )" > ${tmpFileLeader}path.txt

# if matching pair not found, it doesn't exist, so leave doing nothing

if [ ! -s ${tmpFileLeader}path.txt ]

then

funcOutputMsg "${YELLOW}Warning: requested bridge pair $1 was not found on the target system.${NC}"

return

# finish bypass determination - if it shows bypass, we state that and leave

cat ${tmpFileLeader}path.txt | grep currentState | grep normal &>/dev/null

if [ "$?" != "0" ]

then

echo "Bypass"

funcLogoutExit

# if here, it isn't in bypass, so the path must be either up or down - figure it out!

funcApiCall network/bridging

cat $ofile | jq . | grep "Down" &>/dev/null

cat $ofile | jq ".[] | select ( .name | contains(\"$1\") )" | grep "Down" &>/dev/null

if [ "$?" == "0" ]

then

echo "Down"

else

echo "Up"

}

# handles portinfo for a specified pair

function funcPortInfoForPair {

funcOutputMsg "\nInvoking portinfo operation ..."

# identify the pair first determine if bypass is set for the pair

funcApiCall network/bridging

cat $ofile | jq ".[] | select ( .name | contains(\"$1\") )" >${tmpFileLeader}port.txt

# if matching pair not found, it doesn't exist, so leave doing nothing

if [ ! -s ${tmpFileLeader}port.txt ]

then

funcOutputMsg "${YELLOW}Warning: requested bridge pair $1 was not found on the target system.${NC}"

return

# if here, data was valid, so display it

cat ${tmpFileLeader}port.txt | jq .

}

# handles target reboot request

function funcTargetReboot {

funcOutputMsg "\nAttempting to reboot target IP: $productIp ..."

funcApiPostCall system/reboot

cat $ofile | jq .

}

# setup/process parameters

quiet=true

pathState=false

portInfo=false

inBypass=false

valid=false

productIp=$productDefaultIp

productUser=$productDefaultUser

productPass=$productDefaultPass

endpointParm=

rawEndpoint=

endpoint=

maintainSession=false

while [ $# -ne 0 ]

arg="$1"

case "$arg" in

bypass)

funcOutputMsg "Option: bypass"

if [[ "$endpoint" != "" || "$endpointParm" != "" ]]

then

funcErrorExitGeneral "Invalid parameters. Only one endpoint-related parameter can be provided for each invocation. Exiting."

rawEndpoint=GET

endpoint=bypass

valid=true

shift

;;

verbose)

quiet=false

funcOutputMsg "Option: verbose"

# we don't set valid on verbose sub-commands; this is just a decorator

shift

;;

help)

funcOutputMsg "Option: help"

funcShowHelpAndExit

valid=true

shift

;;

ip)

funcOutputMsg "Option: ip"

productIp=$2

if [ "$productIp" == "" ]

then

funcErrorExitGeneral "Invalid parameters. The 'ip' option requires a sub-parameter specifying a numeric IP address or resolvable hostname."

# we don't set valid on ip sub-commands; this is just a decorator

shift

;;

nologout)

maintainSession=true

shift

;;

pairs)

funcOutputMsg "Option: pairs"

if [[ "$endpoint" != "" || "$endpointParm" != "" ]]

then

funcErrorExitGeneral "Invalid parameters. Only one endpoint-related parameter can be provided for each invocation. Exiting."

rawEndpoint=GET

endpoint=network/bridging

valid=true

shift

;;

pass)

funcOutputMsg "Option: pass"

productPass=$2

if [ "$productPass" == "" ]

then

funcErrorExitGeneral "Invalid parameters. The 'pass' option requires a sub-parameter specifying the password to use."

# we don't set valid on pass sub-commands; this is just a decorator

shift

;;

pathstate)

funcOutputMsg "Option: pathstate"

if [[ "$endpoint" != "" || "$endpointParm" != "" ]]

then

funcErrorExitGeneral "Invalid parameters. Only one endpoint-related parameter can be provided for each invocation. Exiting."

endpointParm=true

pathState=true

pair=$2

if [[ "$pair" != "br0" && "$pair" != "br1" ]]

then

funcErrorExitGeneral "Invalid pair. The 'pathstate' option requires a sub-parameter of 'br0' or 'br1'."

valid=true

shift

;;

portinfo)

funcOutputMsg "Option: portinfo"

if [[ "$endpoint" != "" || "$endpointParm" != "" ]]

then

funcErrorExitGeneral "Invalid parameters. Only one endpoint-related parameter can be provided for each invocation. Exiting."

endpointParm=true

portInfo=true

pair=$2

if [[ "$pair" != "br0" && "$pair" != "br1" ]]

then

funcErrorExitGeneral "Invalid pair. The 'portinfo' option requires a sub-parameter of 'br0' or 'br1'."

valid=true

shift

;;

raw)

funcOutputMsg "Option: raw"

if [[ "$endpoint" != "" || "$endpointParm" != "" ]]

then

funcErrorExitGeneral "Invalid parameters. Only one endpoint-related parameter can be provided for each invocation. Exiting."

rawEndpoint=GET

endpoint=$2

if [ "$endpoint" == "" ]

then

funcShowHelpAndExit "Error: the 'raw' option requires a sub-parameter specifying the API endpoint."

valid=true

shift

;;

rawpatch)

funcOutputMsg "Option: rawpatch"

if [[ "$endpoint" != "" || "$endpointParm" != "" ]]

then

funcErrorExitGeneral "\nInvalid parameters. Only one endpoint-related parameter can be provided for each invocation. Exiting."

rawEndpoint=PATCH

endpoint="$2"

if [ "$endpoint" == "" ]

then

funcShowHelpAndExit "Error: the 'rawpatch' option requires a sub-parameter specifying the API endpoint."

jsonFile="$3"

if [ "$jsonFile" == "" ]

then

funcShowHelpAndExit "Error: the 'rawpatch' option requires a second sub-parameter specifying the JSON file to PATCH."

valid=true

shift

;;

rawpost)

funcOutputMsg "Option: rawpost"

if [[ "$endpoint" != "" || "$endpointParm" != "" ]]

then

funcErrorExitGeneral "\nInvalid parameters. Only one endpoint-related parameter can be provided for each invocation. Exiting."

rawEndpoint=POST

endpoint=$2

if [ "$endpoint" == "" ]

then

funcShowHelpAndExit "Error: the 'rawpost' option requires a sub-parameter specifying the API endpoint."

valid=true

shift

;;

rawput)

funcOutputMsg "Option: rawput"

if [[ "$endpoint" != "" || "$endpointParm" != "" ]]

then

funcErrorExitGeneral "\nInvalid parameters. Only one endpoint-related parameter can be provided for each invocation. Exiting."

rawEndpoint=PUT

endpoint="$2"

if [ "$endpoint" == "" ]

then

funcShowHelpAndExit "Error: the 'rawput' option requires a sub-parameter specifying the API endpoint."

jsonFile="$3"

if [ "$jsonFile" == "" ]

then

funcShowHelpAndExit "Error: the 'rawput' option requires a second sub-parameter specifying the JSON file to PUT."

valid=true

shift

;;

reboot)

funcOutputMsg "Option: reboot"

if [[ "$endpoint" != "" || "$endpointParm" != "" ]]

then

funcErrorExitGeneral "\nInvalid parameters. Only one endpoint-related parameter can be provided for each invocation. Exiting."

endpointParm=true

doReboot=true

valid=true

shift

;;

user)

funcOutputMsg "Option: user"

productUser=$2

if [ "$productUser" == "" ]

then

funcErrorExitGeneral "\nInvalid parameters. The 'user' option requires a sub-parameter specifying the password to use."

# we don't set valid on user sub-commands; this is just a decorator

shift

;;

funcShowHelpAndExit "Unknown parameter ($progbase): '$arg'. Exiting."

;;

esac

done

# validity checking

if [ "$valid" != "true" ]

then

funcShowHelpAndExit "Error: no endpoint or endpoint-related parameter was specified. Exiting."

# verify curl is installed and reachable

if [ "$(which curl)" == "" ]

then

funcErrorExitGeneral "'curl' was not found on this system. Please have your system administrator install it and all other dependencies required by this script by using: 'sudo apt-get update && sudo apt-get install curl jq netcat'. Exiting."

# verify curl is installed and reachable

if [ "$(which jq)" == "" ]

then

funcErrorExitGeneral "'jq' was not found on this system. Please have your system administrator install it and all other dependencies required by this script by using: 'sudo apt-get update && sudo apt-get install curl jq netcat'. Exiting."

# verify nc is installed and reachable

if [ "$(which nc)" == "" ]

then

funcErrorExitGeneral "'nc' (also known as 'netcat') was not found on this system. Please have your system administrator install it and all other dependencies required by this script by using: 'sudo apt-get update && sudo apt-get install curl jq netcat'. Exiting."

# verify can see the target system

nc -vzw 2 $productIp 443 &>/dev/null

if [ "$?" != "0" ]

then

funcErrorExitGeneral "Could not see port 443 on IP '$productIp'. Double check that you can connect to that IP from your host system and make sure it is powered on and operational. A good check of the latter is to make sure you can hit the web UI from a browser of your choice. Exiting."

# login and get auth bearer (note: we always use the /api/v1 call for auth login)

rm -f ${tmpFileLeader}err.txt

funcOutputMsg "\nLogging in to get an authorization bearer token ..."

curl --silent -H "Content-Type: application/json" -d "{\"username\":\"$productUser\",\"password\":\"$productPass\",\"agree\":\"false\"}" --insecure -X POST "https://$productIp/api/v1/auth/login" > ${tmpFileLeader}auth.json 2>${tmpFileLeader}err.txt

if [ "$?" != "0" ]

then

funcErrorExitGeneral "Authentication failed. Please update your credentials and try again."

grep "invalid user" ${tmpFileLeader}auth.json &>/dev/null

if [ "$?" == "0" ]

then

funcErrorExitGeneral "Authentication failed. Your credentials were invalid. Please check your credentials and update them as appropriate. See 'help' for command line parameter information."

authBearer="$(cat ${tmpFileLeader}auth.json | cut -d ':' -f2 | cut -d ',' -f 1 | cut -d '"' -f2)"

if [ "$authBearer" == "" ]

then

funcErrorExitGeneral "Authentication failed. Please update your credentials and try again."

funcOutputMsg "Logged in successfully."

# handle reboot

if [ "$doReboot" == "true" ]

then

funcTargetReboot

# handle pathstate

elif [ "$pathState" == "true" ]

then

funcPathStateForPair $pair

# handle portinfo

elif [ "$portInfo" == "true" ]

then

funcPortInfoForPair $pair

# otherwise we must be a raw API call

elif [ "$endpoint" != "" ]

then

# handle standard API call

funcOutputMsg "\nMaking API call using a '$rawEndpoint' invocation: $endpoint ..."

if [ "$rawEndpoint" == "GET" ]

then

funcApiCall $endpoint

elif [ "$rawEndpoint" == "POST" ]

then

funcApiPostCall $endpoint

elif [ "$rawEndpoint" == "PATCH" ]

then

funcApiPatchCall $endpoint "$jsonFile"

else

funcApiPutCall $endpoint "$jsonFile"

funcOutputMsg "API call complete."

# API call results

funcOutputMsg "\nJSON Results (if applicable):\n"

cat $ofile | jq .

else

# technically we shouldn't get here due to previous validations, but use this as a stopgap just in case

funcShowHelpAndExit "Error: no endpoint or endpoint-related parameter was specified. Exiting."

# we're all done; cleanup by properly logging out

funcLogoutExit

Threater - High Availability Best Practices.pdf
4 MB Download

Articles in this section

Comments

Articles in this section

Related articles
